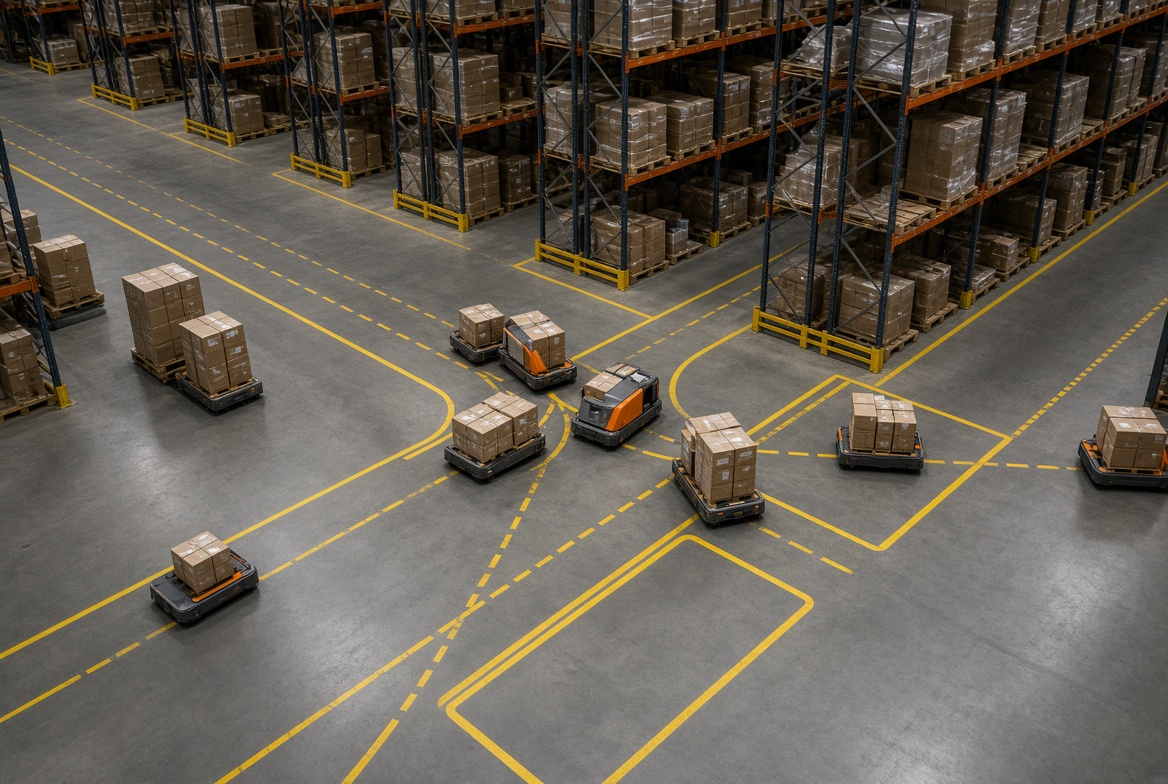

The Hidden Costs of Poor AGV Layout and Path Design

Many AGV projects focus heavily on vehicle selection, software features, and purchase price. Layout and path design often receive far less attention — until the system is live and performance falls short of expectations. Poor AGV layout and path design is one of the most common (and expensive) sources of underperformance.

The costs rarely appear as a single line item. They show up as lower utilization, more exceptions, longer cycle times, higher energy use, and the need for additional vehicles or manual intervention. Over time, these issues quietly erode the return on investment that justified the project in the first place.

Why Layout and Path Design Matter So Much

AGVs do not operate in isolation. Their performance is constrained by the physical environment they travel through. Path length, intersection frequency, aisle width, charging access, and the interaction between multiple vehicles all determine how efficiently the fleet can move material.

A layout that looks acceptable on paper can still create chronic congestion, excessive travel, or bottlenecks once real volumes and variability are introduced. Correcting these problems after go-live is almost always more expensive and disruptive than getting the design right upfront.

Common Layout and Path Design Mistakes

1. Excessive travel distance

Long or poorly routed paths increase cycle time and reduce the number of tasks each vehicle can complete. This often leads to buying more vehicles than would have been necessary with a tighter layout.

2. High-conflict intersections

Paths that force frequent crossings or merges create waiting and contention. In busy systems, a small number of poorly designed intersections can become the primary constraint on throughput.

3. Inadequate separation of traffic flows

Mixing inbound, outbound, and storage traffic on the same primary paths increases complexity and the likelihood of delays. Clearer flow separation usually improves both safety and efficiency.

4. Charging stations in the wrong locations

If vehicles must travel long distances or compete for limited charging access, utilization drops and opportunistic charging becomes harder to manage. Charging layout is a core part of path design, not an afterthought.

5. Insufficient buffer and staging space

Without adequate space for temporary parking, queuing, or exception recovery, small disruptions quickly cascade into larger system delays.

6. Ignoring future volume growth

Layouts designed only for current volume often become constrained as demand increases. Building in modest flexibility for growth is usually far cheaper than redesigning paths later.

How These Problems Translate into Cost

Layout Issue	Typical Hidden Cost
Excessive path length	More vehicles required, higher energy use, slower response
Congested intersections	Lost throughput, more idle time, increased exception handling
Poor charging placement	Lower fleet utilization, more downtime
Insufficient buffers	Cascading delays and higher manual intervention
No growth allowance	Early redesign costs or premature capacity limits

Principles of Better AGV Path Design

• Minimize average travel distance for the highest-volume moves
• Reduce the number of high-conflict intersections
• Separate major traffic flows where practical
• Locate charging stations to support opportunistic charging with minimal empty travel
• Provide adequate staging and recovery space
• Design with realistic peak volumes and modest future growth in mind
• Validate the layout against actual material flow data, not just idealized assumptions

When to Revisit an Existing Layout

Even after go-live, layout problems often become visible through operational metrics. Warning signs include:

• Chronically low vehicle utilization despite available work
• Frequent waiting or congestion at specific points
• High rates of path-related exceptions or blocked vehicles
• The need to add vehicles earlier than expected
• Operators regularly intervening to clear path conflicts

Addressing these issues early is usually far less expensive than continuing to operate with a constrained design.

The Role of Independent Analysis

Layout and path design decisions are difficult to reverse once vehicles are ordered and infrastructure is installed. An independent feasibility study or design review can identify high-risk path configurations, quantify the impact of alternative layouts, and reduce the chance that the system is constrained by its own geometry from day one.

Review our feasibility study scope to see how layout and flow analysis are incorporated into the assessment process.

Key Takeaways

• Poor AGV layout and path design is a frequent and expensive source of underperformance
• The costs appear as lower utilization, congestion, more exceptions, and the need for extra vehicles
• Common mistakes include excessive travel, high-conflict intersections, and poorly placed charging
• Good path design prioritizes short high-volume routes, flow separation, and realistic peak conditions
• Layout problems are far cheaper to correct during design than after the system is operational

Frequently Asked Questions

Can a bad layout be fixed after the AGVs are installed?

Some improvements are possible, but major path changes often require software reconfiguration, physical modifications, and temporary disruption. Prevention is significantly less expensive than remediation.

How early should path design be finalized?

Core path logic and major flow decisions should be validated during the feasibility and detailed design phases — before vehicle counts and infrastructure commitments are locked in.

Does path design affect the number of AGVs required?

Yes. Inefficient paths increase average cycle time, which directly increases the number of vehicles needed to meet the same throughput target.

What data is most useful for evaluating a proposed layout?

Actual material flow volumes by origin-destination pair, peak versus average demand, dwell times at key points, and any known constraints (columns, doors, shared traffic zones) are especially valuable.

AGV performance is only as good as the environment the vehicles operate in. Layout and path design determine how much of the fleet’s theoretical capacity is actually available for productive work. Companies that treat path design as a core engineering decision — rather than a secondary detail — consistently achieve higher utilization, fewer operational surprises, and stronger long-term returns.
